Panic Devices & Deadbolt Housings
with Push/Pull Handles

Any Blumcraft exterior pull handle can be used with any Blumcraft panic device or deadbolt housing. With over 140 combinations available, the architect can select from a wide range of creative options.

For panic devices and deadbolt housings, specify the operating hardware number with the pull handle letter.
Example: H-100-B
  DB-160-J

For dummy handles, specify the prefix DH with the operating hardware number and the pull handle letter.
Example: DH-100-B
  DB-160-J

For push/pull handles, specify the prefix PP, interior handle, exterior handle.
Example: PP-B-E

Panic devices, deadbolt housings, and dummy handles are available in stainless steel or architectural bronze.

Push/pull handles are available in stainless steel, architectural bronze, or aluminum.

Before sending preliminary sketches to Blumcraft, please refer to complete catalogs in Sweets:

Tempered Glass Doors - 08 41 00 / BLU
Architectural Hardware - 08 71 00 / BLU
Display Case Doors - 12 35 59 / BLU
Railing Systems - 05 73 00 / BLU

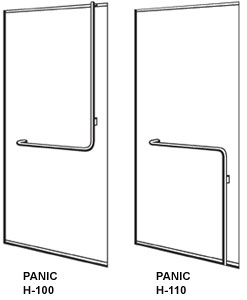

Panic Devices Operating Handles on Interior Side of Door

MAXIMUM DOOR HEIGHTS - H-100 Only
With Crash Bar at 42" High

DOOR
HEIGHT
GLASS
THICKNESS
EXTERIOR HANDLES
APPLICABLE
8’-6" 1/2" All
9’-0" 1/2" “F” Full Height
9’-0" 1/2" “F” 10’ Short of Door Bottom
9’-0" 3/4" All

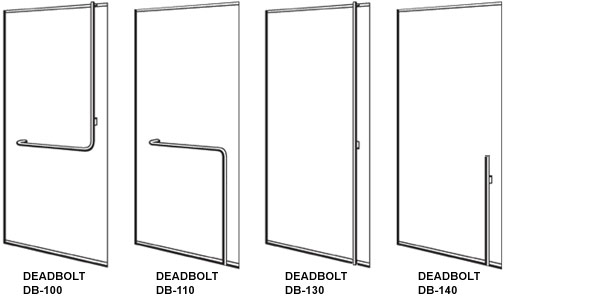

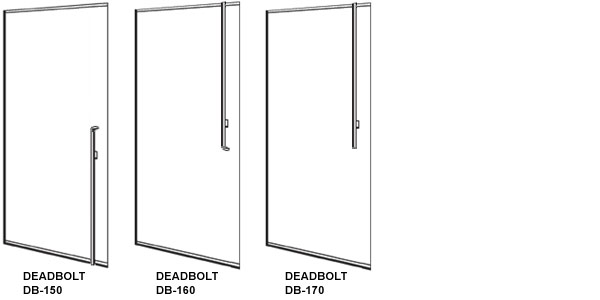

DEADBOLT LOCK HOUSINGS
WITH LOCKING MECHANISM
ON INTERIOR SIDE OF DOOR

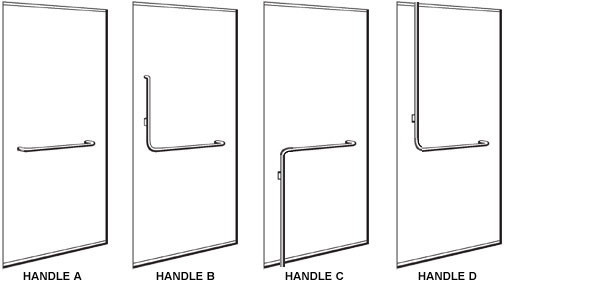

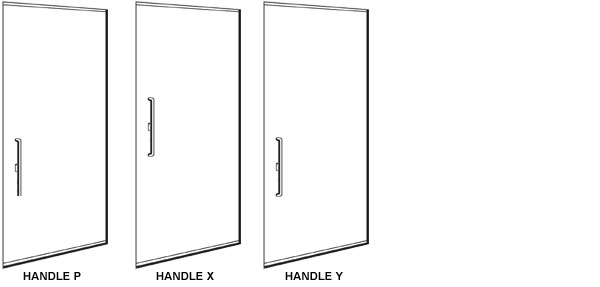

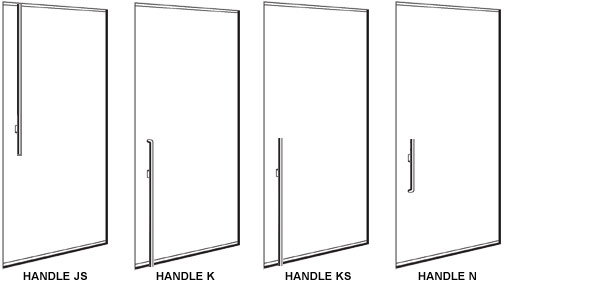

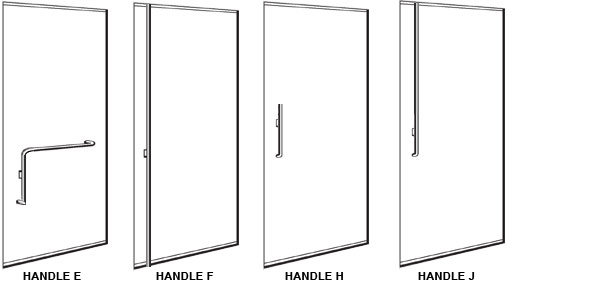

Exterior Push / Pull Handles




ALL HARDWARE APPLICABLE TO MOST TYPES OF DOORS INCLUDING

  • TEMPERED GLASS
  • WOOD
  • MEDIUM OR WIDE STILE AND RAIL
  • BALANCED
  • HOLLOW METAL
